50T Welding Positioner Turntable for Pipe Roller & Tank Fabrication

Name: 50T Welding Positioner Turntable for Pipe Roller amp Tank Fabrication
Brand: KENKE
Price: 1 USD

Buy cheap 50T Welding Positioner Turntable for Pipe Roller & Tank Fabrication product

Brand Name : KENKE

Model Number : HJ500

Certification : CE, ISO9000

Place of Origin : WUXI, CHINA

MOQ : One set

Price : Please confirm with us

Payment Terms : 30% TT in advance, 70% TT before the shipment

Supply Ability : 10 sets month, 100 sets per year

Delivery Time : 40 working days

Packaging Details : Seaworthy package

Load Capacity : 50T

Rotation Torque : ≥50000 (Dual-Drive)n.m

Worktable Diameter : φ4000

Table Height : 1250 (excluding foundation pads)

Rotation Angle : 0°～±360° (Continuous Unlimited Rotation)

Rotation Speed : 0.005 - 1 rpm

Speed Accuracy : ≤1%

Radial Runout : ≤0.5mm

Axial Runout : ≤0.5mm

Speed Control : Servo Drive

Motor Power : 2×11 (Dual-Drive)kW

Control Mode : Wireless Remote & Programmable PLC

Conductive Capacity : 2000A

Workpiece Compatibility : Supports workpiece diameter ≥φ4000 for welding and cleaning

Contact Now

Detailed Product Description:

Adjust mode: Servo-controlled speed adjustment
Structure: Heavy-duty steel structure with precision machining
Drive System: Dual servo motor drive for high torque and smooth operation
Electrics: CE-compliant safety standards
Application: Large-diameter pipe welding, tank fabrication, pressure vessels
Speed Control: AC Servo Control
Control System: Wireless remote & programmable PLC control

Brief Introduction:

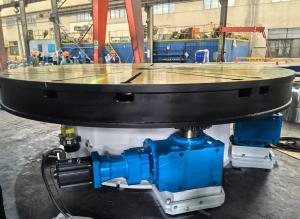

The HJ500 Welding Positioner Turntable is a high-precision, heavy-duty solution for large pipe and tank fabrication. Built with high-strength steel, all welded parts undergo stress-relief treatment to prevent deformation over long-term use.

Equipped with dual-drive servo motors, this positioner ensures precise, smooth, and continuous 360° rotation. It features both wireless remote and PLC control, allowing operators to control rotation manually or via pre-programmed automation.

Technical Parameters of HJ500 Welding Positioner:

No.	Item	Unit	Parameter
1	Load Capacity	t	50
2	Rotation Torque	n.m	≥50000 (Dual-Drive)
3	Worktable Diameter	mm	φ4000
4	Table Height	mm	1250 (excluding foundation pads)
5	Rotation Angle	°	0°～±360° (Continuous Unlimited Rotation)
6	Rotation Speed	rpm	0.005 - 1
7	Speed Accuracy		≤1%
8	Radial Runout	mm	≤0.5
9	Axial Runout	mm	≤0.5
10	Speed Control		Servo Drive
11	Motor Power	kW	2×11 (Dual-Drive)
12	Control Mode		Wireless Remote & Programmable PLC
13	Conductive Capacity	A	2000
14	Workpiece Compatibility		Supports workpiece diameter ≥φ4000 for welding and cleaning

Functions:

Forward/stop/reverse rotation
Variable speed control with high precision
Continuous 360° unlimited rotation
Automatic/manual control via PLC & wireless remote
Emergency-stop safety feature
Real-time system diagnostics & fault detection

Applied Industries:

Wind tower fabrication
Large pipe welding and assembly
Pressure vessel manufacturing
Chemical & fuel storage tank fabrication
Heavy industrial welding applications

Key Features:

Heavy-duty steel construction for long service life
Dual servo motor drive for high torque and smooth operation
Variable frequency drive (VFD) for precise speed control
Programmable PLC & wireless remote control for flexible operation
CE-certified safety standards
Customizable to meet specific project requirements

Points You May Concern:

Customization - Can this machine be customized?

Yes, we provide tailor-made solutions based on your specific requirements.

Transportation - What is the shipping method?

Standard seaway transportation is used. Rail-sea combined transport is also available.

After-Sale Service - What support do you provide?

12-month warranty for the entire machine.
Full responsibility for quality-related issues.
Lifetime technical support.
On-site engineer service available upon request.
